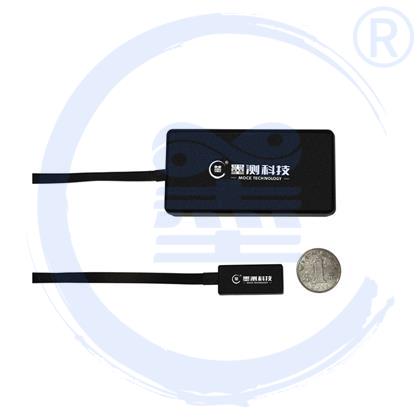

FID Scalar Geomagnetic Quantum Magnetometer

Category: Quantum Magnetometer
Model: QTFM-Mozi 2.0
Type: FID Scalar Optically Pumped Magnetometer

The FID Geomagnetic Quantum Magnetometer is a high-performance quantum sensing instrument based on free induction decay (FID) technology, delivering ultra-sensitive geomagnetic measurements at the pT level.

With no requirement for cryogenic cooling, it combines low power consumption, exceptional stability, and robust operation in demanding environments.

Engineered for both scientific research and field applications, the system enables reliable long-term monitoring and real-time data analysis, supporting a wide range of advanced geomagnetic applications.



Technical Specifications
Parameter Specification Parameter Specification
Type Optically Pumped Rubidium Scalar Magnetometer Magnetic Probe Size 36mm*20mm*19mm
Sensitivity 15 pT/√Hz Sensor Size 125mm*58mm*29mm
Sampling Rate 1000Hz Magnetic Probe Weight 29g
Measurement Range 1000nT-100000nT Operating Temperature -15 ℃ to 55 ℃
Bandwidth 500Hz Dead Zone ±15°
Maximum Gradient Field 700nT/cm Power Supply 5V/2A
Parameter Specification
Type Optically Pumped Rubidium Scalar Magnetometer
Magnetic Probe Size 36mm*20mm*19mm
Sensitivity 15 pT/√Hz
Sensor Size 125mm*58mm*29mm
Sampling Rate 1000Hz
Magnetic Probe Weight 29g
Measurement Range 1000nT-100000nT
Operating Temperature -15 ℃ to 55 ℃
Bandwidth 500Hz
Dead Zone ±15°
Maximum Gradient Field 700nT/cm
Power Supply 5V/2A
