Low-Noise Current Source V 1.0

Category: Low-Noise Current Source

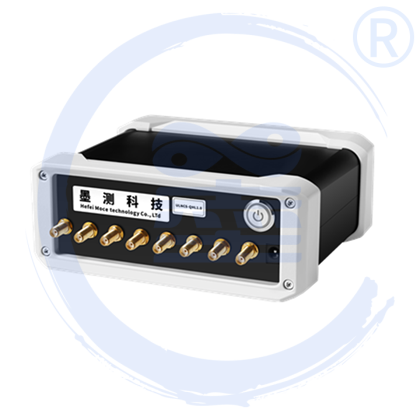

Model: LNCS-QHL 1.0

Type: Multi-Channel Low-Noise Current Source Module

The QHL Series Low-Noise Current Source Module is designed for precision current control in demanding applications. It features eight independent output channels, enabling accurate and flexible current modulation based on input signals.

With ultra-low noise performance and high stability, the system is well suited for applications such as quantum precision measurement, atomic magnetometry, and laser control systems.

Technical Specifications

Parameter	Specification	Parameter	Specification
Power Supply Voltage	DC9-36V/2A	Output Resolution	<3.43uA(1mV)
Number of Input Channels	8CH	Load Capacitance	<520pF
Number of Output Channels	8CH	Operating Temperature	0--+60℃
Modulation Frequency	DC--1MHz	Storage Temperature	-20--+80℃
Noise Density	50pA/√ Hz	Operating Humidity	0--80%RH
Modulation Voltage	±2V	Dimensions (L × W × H)	142.8mm167.3mm63.9mm
Maximum Output Load	10Ω	Weight	830g
Output Current Relation	lout(mA)=Vin(mV)/50(Ω)

Parameter	Specification
Power Supply Voltage	DC9-36V/2A
Number of Input Channels	8CH
Number of output channels	8CH
Modulation Frequency	DC--1MHz
Noise Density	50pA/√ Hz
Modulation Voltage	±2V
Maximum Output Load	10Ω
Output Current Relation	lout(mA)=Vin(mV)/50(Ω)
Output Resolution	<3.43uA(1mV)
Load Capacitance	<520pF
Operating Temperature	0--+60℃
Storage Temperature	-20--+80℃
Operating Humidity	0--80%RH
Dimensions (L × W × H)	142.8mm167.3mm63.9mm
Weight	830g
