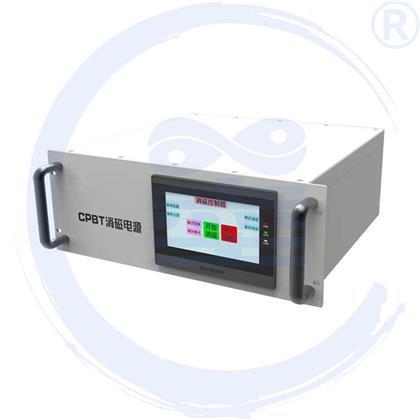

Demagnetizer
During the use of the magnetic shielding cylinder, various frictions, passive occurrence of stress and the influence of surrounding magnetic field magnetization can cause the cylinder to become magnetize again, which directly affects the remanence inside the cylinder. The demagnetizer produced by our company can demagnetize the shielding cylinder again through the built-in demagnetization coil, so that the residual magnetic field inside the shielding cylinder can reach the level of < 1nT again.Product Name: Demagnetizer;
Specification Model: MSC-MS1.0；
SPECIFIC PARAMETERS
|
Name |
Parameter |
Name |
Parameter |
|
Model |
MSC-XCQ |
Distortion Degree |
≦3%（Resistive load, rated voltage current and frequency conditions） |
|
Output Capacity |
2KVA |
Protective Device |
Short-circuit protection, overload protection, overcurrent protection, overvoltage protection, power device overheating protection, etc |
|
Work Mode |
SPWM Mode, Sine Wave Output |
Memory Function |
Automatic memory of the last startup running parameters |
|
Input Power |
single phase AC220V±15%50/60Hz±5% |
Programmed Mode |
You can set up to 20 sets of program-controlled parameters, each set of parameters includes: output frequency, output voltage, output current, rise and fall time, hold time and stop time. 20 sets of parameters can be selected by enabling or disabling. |
|
Output Phase |
single phase AC220V±15%50/60Hz±5% |
Communication interface |
RS485communication, none (optional) |
|
Output Frequency |
Rated：50Hz |
Display Voltage Accuracy |
Step Size：0.1V，Accuracy：±(0.5%×Reading value+0.1%×Full scale value） |
|
Frequency Accuracy |
≤0.1% |
Display Current Accuracy |
Step Size：0.1A，Accuracy：±(0.5%×Reading value+0.1%×Full scale value） |
|
Frequency Stability |
≤0.01% |
Display Power Accuracy |
Step Size：1W，Accuracy：±1%（Power factor above 0.8） |
|
Output Voltage |
Rated Voltage：15V |
Display Mode |
7 inches Color Touch Display screen |
|
Output Current |
0-60.0A |
Power |
≥85% |
|
Output Step Size |
0.1A. |
Efficiency |
≤65dB |
|
Rated current |
60A |
Contour Size Width × Depth × Height (mm) |
482.6mm*420mm*177mm |
|
Current stability |
±（50%×Set value+0.2%×ln) |
Working Environment |
Temperature：0-40°C， Relative Humidity：<90%RH |
